Application scope

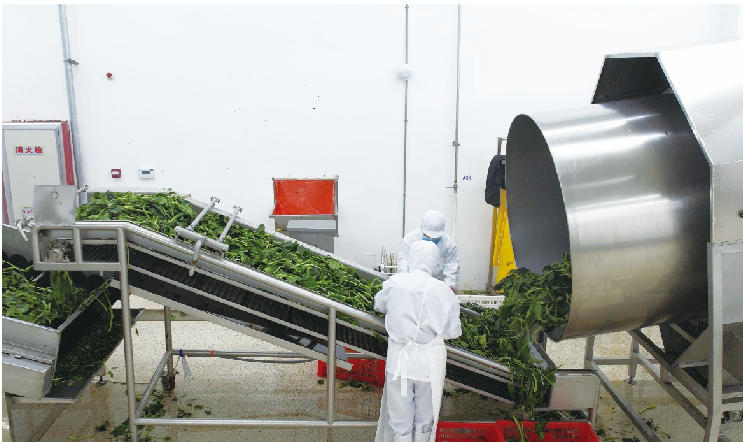

Suitable for large-scale industrial processing of various leafy vegetables (such as spinach, rapeseed, cabbage, shepherd's purse, etc.), this equipment boasts advantages such as high efficiency, low energy consumption, convenient operation, and low maintenance costs, making it an ideal solution for the frozen leafy vegetable processing industry. The entire production line supports modular design and can be flexibly customized to meet different specifications and production scales based on customer capacity requirements and site conditions.
FAN
Scope of application This machine is suitable for screening and removing impurities from leafy vegetable products. Equipment Description The air classifier's plates and pipes are all made of SUS-304 stainless steel. The machine uses a high-power centrifugal fan to blow the product upwards. Under gravity, heavier impurities such as mud and sand fall into the bottom collection chamber, while lighter impurities such as hair and dander are blown into the top collection chamber. The air-classified product falls into the hopper and is conveyed to the next processing stage. An observation window is installed on the side of the machine, allowing adjustment of the centrifugal fan speed according to the blowing conditions of different materials within the air classifier chamber, thereby regulating the airflow and ensuring thorough air separation of the product, preparing it for subsequent cleaning.
|
BRUSH ROLLER IMPURITY REMOVAL MACHINE
Scope of application

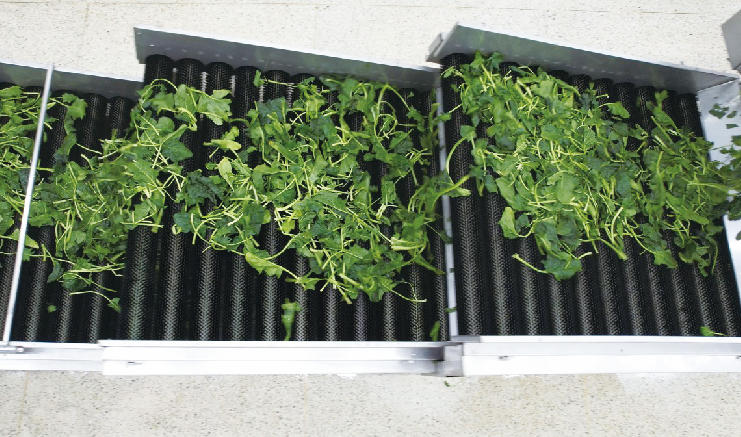

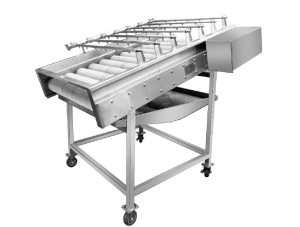

This machine is suitable for cleaning leafy vegetables, root vegetables, and other similar products. Equipment Description The bristle roller cleaning machine is made of SUS-304 stainless steel for both the sheet metal and the tubing. The machine uses multiple rotating bristle rollers to move the material forward. As the rollers rotate, the brushes on them contact the product, removing dirt, hair, and other debris. The machine is also equipped with a spray system; water sprayed onto the product effectively cleans it, facilitating subsequent washing.
|
DRUM CLEANING MACHINE
Scope of application

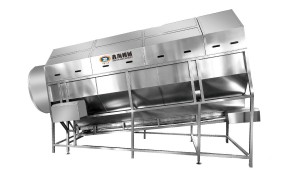

This machine is suitable for rotary impurity removal of leafy vegetables. Equipment Description The drum cleaning machine is constructed entirely of SUS-304 stainless steel for both its sheet metal and piping. The machine utilizes a rotating drum; leafy vegetables rotate inside the drum and, under gravity, fall onto the drum, impacting the inner mesh. Dirt and other impurities fall onto a lower conveyor and are then transported to an external waste collection device. The machine is equipped with external protective plates to prevent impurities from escaping and causing pollution during drum rotation. |
VEGETABLE SLICER
Scope of application
This machine is suitable for cutting leafy vegetables into sections. Equipment Description This vegetable cutter uses SUS-304 stainless steel for both its sheet metal and tubing. It features a V-shaped conveyor belt that centrally transports the product forward, ensuring it is conveyed at a 90° angle to the cutter head. The high-speed rotating blade then cuts the product into its desired shape as it passes through the conveyor belt's inlet. The machine is equipped with a frequency converter, allowing for adjustable conveyor speed and blade rotation speed. This enables it to meet the cutting requirements of products of different sizes.
|
