Gravity Destoner
Equipment Description
This gravity destoning machine uses SUS-304 stainless steel for both its plates and pipes. It cleans products using gravity. Products fall into the destoning machine's trough and are agitated by the bottom spiral rollers, causing them to tumble and swirl. Dirt and sand are washed away by gravity and fall into the bottom collection hopper. Larger stones are carried out by the side elevator, while smaller gravel is periodically discharged from the drain. As the products move forward through the rollers, they are tumbled and cleaned. High-pressure spray at the top of the rollers removes any remaining dirt and sand. The cleaned potatoes are then lifted out of the trough by a conveyor belt and fall into subsequent equipment.
SILO CONVEYOR
Scope of Application
This machine is suitable for conveying products such as potatoes and sweet potatoes.
Equipment Description
The conveyor belt for this silo is constructed entirely of SUS-304 stainless steel for both its plates and pipes. It utilizes a stainless steel support shaft belt for smooth material transport without damage. The conveyor system is sprocket-driven, preventing the belt from swerving or tilting. The protective plates feature a rounded design for easy cleaning and to prevent sand and mud residue.
DESTONER
Scope of Application
Used for removing stones from products containing a lot of mud, sand, and pebbles.
Equipment Description
The destoner's plates and pipes are all made of SUS-304 stainless steel. Two sets of steel rollers rotate to drive the product in a rolling cleaning process. Mud, sand, and pebbles are discharged from the gaps in one set of rollers and fall into the bottom collection hopper. The product falls into the other set of rollers, where water in the roller grooves washes away the mud and sand from its surface.
CLEANING MACHINE
Scope of Application
Suitable for peeling and cleaning fruits and root vegetables.
Equipment Description
The cleaning machine's plates and pipes are all made of SUS304 stainless steel. The machine uses rotating brush rollers to drive the products forward for cleaning. A powerful spray system is installed at the top of the equipment to thoroughly clean the products.
PHYSICAL BLASTING MACHINE
Scope of Application
It is suitable for processing the peeling of various products, such as potatoes, sweet potatoes, apples, yellow peaches, grapes, dates, hawthorns, kiwis, etc.
Equipment Description
The physical peeling machine uses SUS-304 stainless steel for both its sheet metal and tubing. Physical peeling is a fast, efficient, and energy-saving technology for peeling fruits and root vegetables. Through technological upgrades, excess space inside the peeling tank can be effectively reduced, improving the efficiency of heat transfer from steam to the product surface and reducing the total amount of steam in the pressure vessel, thereby saving energy.

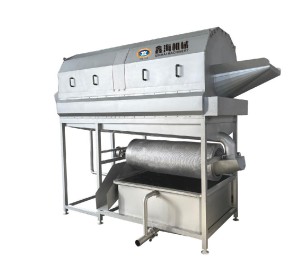

DRUM PEELING MACHINE
Scope of Application
Suitable for peeling fruits and root vegetables.
Equipment Description
The roller peeling machine uses SUS-304 stainless steel for both its sheet metal and tubing. The machine employs a stainless steel rotating drum with a perforated mesh to drive the product's rotation, while a rotating stainless steel auger propels the product forward, thus achieving the purpose of peeling. A spray system is installed at the top of the peeling chamber to effectively wash away the product's surface skin, which falls onto the waste conveyor belt below. A cleaning port is located on the side of the machine for easy observation and cleaning of the interior.

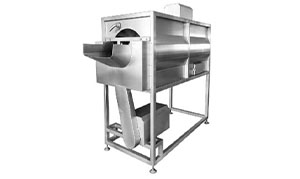

SPIRAL BRISTLE ROLLER CLEANING MACHINE
Scope of Application
This spiral roller cleaning machine is suitable for cleaning fruits, roots, and other products after peeling.
Equipment Description
The spiral brush roller cleaning machine uses SUS-304 stainless steel for both its sheet metal and tubing. The machine uses rotating brush rollers to drive the product forward for cleaning. A powerful spray system is installed at the top of the equipment to thoroughly clean the product.
HYDRAULIC CUTTING SYSTEM
Scope of Application Suitable for cutting potatoes and sweet potatoes into long strips. Equipment Description This hydraulic cutting system uses a high-efficiency centrifugal water pump to pump potatoes. The pump draws potatoes from the temporary storage tank, and through a conical tube and guide, the potatoes are axially conveyed to the water jet module. The potatoes are cut into square strips by water jets arranged in a grid pattern. The potato strips are then carried by the water flow through a funnel-shaped transmission port to the dewatering conveyor. The bottom collection hopper of the dewatering conveyor transports the starch mixture to the filtering tank. The filtered water flows back to the potato temporary storage tank and is pumped out again. A pneumatic gate valve is installed at the bottom of the filtering tank to periodically discharge starch, debris, and other sediments from the filtering tank. |
GO FLAT BAR MACHINE
Scope of Application
Suitable for screening strip-shaped products.
Equipment Description
The sheet metal and tubing of this deflating machine are all made of SUS-304 stainless steel. The machine utilizes shaft rotation to screen flat strips; it is rationally designed, has a simple structure, convenient rinsing equipment, and leaves no mud or sand residue after rinsing.

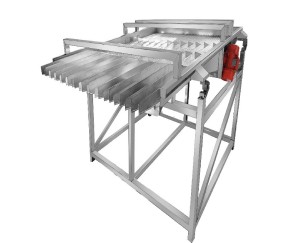

GO TO THE SHORT HEAD MACHINE
Scope of Application
This machine is suitable for removing short strips from strip-shaped products. Equipment Description Made of SUS-304 stainless steel. This machine uses upper and lower layers of screens to screen products. Shorter products are screened out as they pass through the screen holes and fall into the bottom collection hopper. The machine has high screening efficiency, low vibration noise, longer service life, and is easy and convenient to clean. The vibrating motor rotates the eccentric wheels on both sides to vibrate the screen surface, which disperses the material evenly. The forward and backward vibration of the springs achieves the purpose of material forward transmission. |
SPIRAL SUGAR BUFFER MACHINE
Scope of Application
Suitable for slow sugar processing of various product categories.
Equipment Description
The sugar-resetting machine's plates and pipes are all made of SUS-304 stainless steel. The machine uses a stainless steel auger to drive the product forward. The product falls into the sugar-resetting machine, is conveyed forward by the auger, and undergoes complete sugar resetting under hot water immersion. At the discharge port, a lifting mechanism ejects the product out of the sugar-resetting machine to the next processing stage. The machine has a reasonable structure, is easy to clean, and leaves no impurities after cleaning.
COLOR PROTECTION MACHINE
Scope of Application
It is suitable for upgrading various products.
Equipment Description
The color protection machine's plates and pipes are all made of SUS-304 stainless steel. The machine uses a stainless steel mesh belt, ensuring smooth material transport without damage. The conveyor system is sprocket-driven, preventing the belt from swerving or deviating. The protective plates feature a rounded design for easy rinsing and to prevent impurities from remaining. Products fall into the water tank and fully contact the color protection machine, then, after sufficient time, are lifted onto the conveyor belt to the next process.
LIZHI MACHINE
Scope of Application
Suitable for straightening strip-shaped products such as potato chips.
Equipment Description
The straightening machine's plates and pipes are all made of SUS-304 stainless steel. It uses a stainless steel spring-loaded vibrating screen, which is quiet, has a longer service life, and is easy to clean. The vibrating motor rotates symmetrical eccentric wheels on both sides to vibrate the screen surface, ensuring even material distribution. The material is propelled forward by the difference in vibration between the springs. The machine also has a straightening function, capable of straightening misaligned fries before they pass axially through the screen.
DRYER
Scope of Application
Suitable for rapid drying of all types of products.
Equipment Description
The dryer's plates and pipes are all made of SUS-304 stainless steel. It uses a stainless steel mesh belt conveyor, with multiple heat dissipation devices installed beneath the belt. As the products are conveyed forward, the heat dissipation devices release heat, which is then forcibly transferred to the products on the belt by a centrifugal fan, promoting rapid drying. A dehumidifying fan is located at the top of the dryer to quickly remove moisture evaporated from the products. The machine is completely wrapped in insulation material and covered with stainless steel plates, which is aesthetically pleasing while locking in heat, reducing heat loss, and saving energy.
IMMERSION MACHINE
Scope of Application Suitable for impregnation of various product categories. Equipment Description The impregnation machine uses SUS-304 stainless steel for both its plates and pipes. The machine uses a pump to deliver the pre-mixed slurry from the mixing tank to the slurry coating system, which is installed above the impregnation tank and combined with a pressure belt. The product is conveyed into the impregnation tank and pressed into the slurry by the pressure belt. The slurry gushing from the coating system forms a waterfall that envelops the product. After passing through the impregnation tank, the product is fully coated with slurry, and excess slurry on the product surface is blown away by high-pressure air. A collection hopper below the conveyor belt collects excess slurry and returns it to the mixing tank for reuse. The impregnation machine is divided into three sections: the first section is for product impregnation, and the second and third sections are for blowing away excess slurry from the product surface. |
FRYING MACHINE
Scope of Application
Suitable for frying various products, including potatoes.
Equipment Description
The plates and pipes of this fryer are all made of SUS-304 stainless steel. This machine features high frying capacity, high production efficiency, and excellent product quality. Its unique slag removal and filtration system extends the oil's usability and ensures consistent product color. The heating system has high heat transfer efficiency and can automatically control the temperature to maintain a constant oil temperature.
AIR COOLED ELEVATOR
Scope of Application
Suitable for receiving and bagging quick-frozen products.
Equipment Description
The plates and pipes of this air-cooled elevator are all made of SUS-304 stainless steel. The machine uses a stainless steel mesh belt conveyor, ensuring smooth material transport without damage. The conveyor is sprocket driven, preventing the conveyor belt from swerving or deviating. A cooling axial fan is installed above the conveyor belt to effectively remove heat from the product surface. The protective plates feature a rounded design for easy cleaning and to prevent sand and mud residue.
